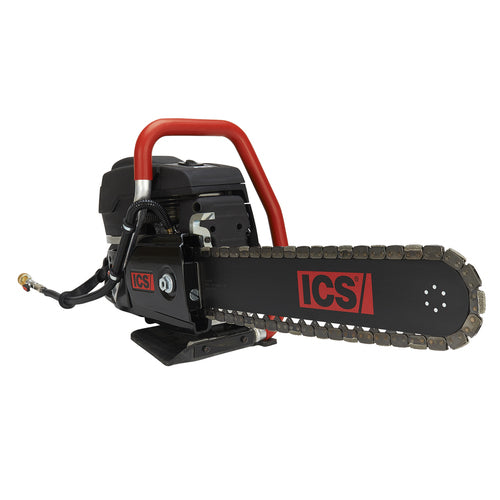

695XL-16 PG-XL Gas Saw Package

Product Details

• Use on concrete, stone, masonry, brick, block, ductile iron, cast iron, PVC, HDPE and more
• Most versatile gas power cutter
• Piston and cylinder lowers engine temperature
• Longer life muffler with reinforced internal baffle
• Easy-to-start with higher energy ignition system
• Easy-to-tune carburetor
• Will also operate FORCE4 diamond chains.




  Specifications, Details & Support

  Gas Concrete Saw

  Engine Type	2-stroke, single cylinder, air cooled
  Displacement	5.7 cu in (94 cc)
  Engine Speed Max	9,300 +/- 150 rpm (max)
  Engine Speed Idle	2,700 +/- 100 rpm
  Fuel Mix Ratio	50:1 (2%) fuel-to-oil
  Fuel Capacity	0.26 gal (1 L)

  Chainsaw

  Power Type	Gas
  Use Application	HDPE Ductile Iron Cast Iron PVC AC Pipe
  Weight, Saw Only	21 lbs (9.6 kg)
  Cutting Depth	up to 16 in (40 cm)
  Bar Length	16 in (40 cm)
  Noise Level (Power, LWA)	115 dB(A), (Kwa = 1.0 dB(A))
  Chain Length	16 in (40 cm)
  Noise Level (Pressure, LpA)	104 dB(A), (K=1.0 dB(A))
  Horsepower	6.4 hp (4.8 kW)
  Front Handle Vibration, ahv eq Concrete Cutting	3.6 m/s2 (K=0.2 m/s2)
  Rear Handle Vibration, ahv eq Concrete Cutting	3.1 m/s2 (K=0.2 m/s2)
  Front Handle Vibration, ahv eq Pipe Cutting	5.62 m/s2 (K=0.2 m/s2)
  Rear Handle Vibration, ahv eq Pipe Cutting	5.28 m/s2 (K=0.2 m/s2)
  Water Supply (Min)	20 psi (1.4 bar)
  Water Flow Req (Min)	2 gpm (8 lpm)

  General

  Unit of Measure	Each
