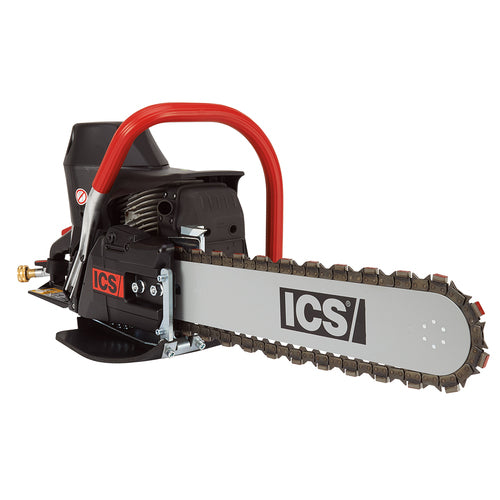

680ES-12 GC Gas Saw Package

Product Details

• Polyester air filter designed specifically for wet cutting
• Operates FORCE3® bar and chain consumables up to 14” (35cm)
• Multifunction lever controls choke, throttle advance, run and stop modes
• Extended drive sprocket adapter offers easy chain assembly
• Deep cutting solution for obstructed or small openings
• Cut squares as small as 4” x 4” (10 cm x 10 cm)
• Easy-to-start in all weather




  Specifications, Details & Support

  Gas Concrete Saw

  Engine Type	2-stroke, single cylinder, air cooled
  Displacement	4.7 cu in (76.5 cc)
  Engine Speed Max	11,500 +/- 500 rpm (max)
  Engine Speed Idle	2,800 - 3,200 rpm
  Fuel Mix Ratio	50:1 (2%) fuel-to-oil
  Fuel Capacity	0.23 gal (0.88 L)

  Chainsaw

  Power Type	Gas
  Use Application	Asphalt, Brick, Block, Concrete, Masonry, Stone
  Weight, Saw Only	21 lbs (9.6 kg)
  Cutting Depth	up to 12 in (30 cm)
  Bar Length	12 in (30 cm)
  Noise Level (Power, LWA)	117 dB(A), (Kwa=3.0 dB(A))
  Chain Length	12 in (30 cm)
  Noise Level (Pressure, LpA)	101 dB(A), (K=2.0 dB(A))
  Horsepower	5 hp (3.7 kW)
  Front Handle Vibration, ahv eq Concrete Cutting	7.2 m/s2 (K=1.0 m/s2)
  Rear Handle Vibration, ahv eq Concrete Cutting	8.5 m/s2 (K=1.0 m/s2)
  Water Supply (Min)	20 psi (1.4 bar)
  Water Flow Req (Min)	2 gpm (8 lpm)

  General

  Unit of Measure	Each
